Looking for a solid battery management systems book PDF but want the core ideas distilled first? Let’s ground everything in the same fundamentals you’d find in a top-tier battery management system textbook—just explained like we’re sketching on a whiteboard over coffee.
At the heart of every BMS is lithium-ion electrochemistry:
Lithium-ion cells move lithium ions between the cathode and anode as you charge and discharge.
The voltage curve (voltage vs. state-of-charge) is not linear. Small voltage changes can mean big SoC changes in some regions and almost nothing in others.
Degradation mechanisms—like SEI layer growth, lithium plating, and electrode cracking—slowly reduce:
Capacity (you get fewer amp-hours),
Power capability (you can’t pull as much current safely),
Cycle life (the pack “ages out” faster).
Think of the cell as a bank account: every cycle is a withdrawal on lifetime, and every abuse event (overheat, overcharge) is an overdraft fee.
A modern lithium-ion BMS design performs a few non‑negotiable jobs:
Voltage monitoring:
Measures every cell (or group of cells) to prevent:
Overcharge (which risks thermal runaway),
Over-discharge (which permanently damages cells).
Current sensing:
Tracks how much current flows in and out. This powers:
Coulomb counting SoC estimation,
Overcurrent and short-circuit protection.
Temperature regulation:
Multiple sensors feed battery thermal management strategies:
Shut down or limit current when cells get too hot or too cold,
Coordinate with cooling systems (air, liquid, or refrigerant).
State-of-charge estimation techniques:
SoC is “fuel gauging” for batteries.
A simple analogy:
Voltage-based SoC is like judging a fuel tank by how “heavy” the car feels (quick but imprecise).
Coulomb counting is like a precise flow meter in the fuel line (accurate short-term, drifts over time without calibration).
Together, these functions keep every cell within safe electrical and thermal limits while giving the system an accurate “gas gauge.”
The industry has shifted rapidly:
Early systems:
Crude voltage thresholds and basic coulomb counting.
No dynamic adaptation, minimal SoH prediction algorithms, limited fault insight.
Model-based BMS:
Equivalent circuit battery modeling (RC networks, Thevenin models) improved accuracy.
Kalman filter battery estimation and other observers reduced noise and drift in SoC and SoH.
AI-integrated BMS today:
SoC under dynamic loads,
SoH trends,
Remaining useful life and state-of-power limits.
Machine learning models trained on real fleet data refine:
These enable features like ultra-fast charging, predictive safety, and grid-scale BESS management with high reliability.
In other words, BMS has gone from a simple watchdog to a real-time digital twin of the battery pack.
Field data from EVs and stationary storage has debunked several myths:
Myth: “Voltage alone is enough for SoC.”
Reality: Under load, voltage is distorted by internal resistance and temperature. Without current history, your “fuel gauge” lies.
Myth: “Cells from the same batch age identically.”
Reality: Minor variations in:
Manufacturing,
Local temperature,
Load sharing
cause cell imbalance and uneven aging—one weak cell can limit the entire pack.
Myth: “If it doesn’t catch fire, it’s fine.”
Reality: Most failures are subtle:
Gradual capacity fade from mild overheating,
Hidden fault detection in battery packs missed by poor diagnostics,
Early SoH drop due to aggressive charging without proper control.
Robust BMS design is not just about avoiding catastrophic events; it’s about minimizing silent performance and lifetime losses that cost real money over the system’s life.
If you’re hunting for a battery management system book or a battery management system textbook PDF, these are the core principles you should expect it to cover—chemistry, measurement, estimation, protection, and the data-backed truth about how packs actually fail in the field.
When you’re digging into any solid battery management system textbook or battery management systems book pdf, one of the first real design choices you’ll hit is BMS topology. In practice, how you arrange your BMS matters just as much as which battery cells you pick.
Here’s the quick, real-world breakdown I use when talking with EV and energy storage clients in the U.S.:
| Topology | How it Works | Main Pros | Main Cons | Typical Use Cases |
|---|---|---|---|---|
| Centralized | One main BMS board handles all cells | Lowest BOM cost, simple to manufacture | Heavy wiring, harder fault isolation, bulky | Small packs, low-voltage systems |
| Distributed | Small boards on each cell/module | Great accuracy, easier to scale and service | Higher cost, more boards, more connectors | EV packs, industrial, high-voltage |
| Modular | Repeated “smart” modules linked to a master BMS | Scalability, flexible design, faster build | Needs robust comms & architecture planning | EVs, buses, grid-scale BESS, forklifts |
If you’re working on BMS topologies for EVs or grid storage, centralized is usually too limiting once voltage and pack size grow. Modular BMS architectures hit the sweet spot for most U.S. customers who care about cost, serviceability, and future scaling.
Every serious lithium-ion BMS design revolves around a few core hardware blocks:
Sensors
Voltage sense lines for every cell or group of cells
Current shunts or Hall sensors for charge/discharge monitoring
Temperature sensors (usually NTCs or digital probes) spread across the pack
Microcontrollers (MCUs)
Run state-of-charge estimation techniques (like coulomb counting + Kalman filter)
Drive balancing circuits and protection MOSFETs/relays
Handle diagnostics and self-checks for fault detection in battery packs
Communication protocols
CAN bus for EVs, industrial vehicles, and stationary storage (robust, automotive-grade)
I2C / SPI for local communication between cell-monitor ICs and the main MCU
Optional higher-level links (Ethernet, RS485, etc.) for large grid-scale BESS management
In the U.S. market, CAN is non-negotiable for automotive and most off-road equipment. If your battery management system book doesn’t treat CAN robustness and arbitration as a core topic, it’s behind the curve.
Once you go beyond a few dozen cells, integration becomes the real battle:
Daisy-chaining cell monitoring ICs
Cuts down wiring, but you must protect against a single break taking down the whole chain.
Good design adds watchdogs, CRC checks, and safe failure modes.
Fault isolation
You need to be able to identify which module, string, or board is misbehaving fast.
Smart use of addressing, per-module fuses, and local diagnostics keeps the whole pack from going offline.
This is where many DIY or low-end BMS designs fail: they measure well on the bench but become a nightmare once vibration, temperature swings, and real-world abuse show up.
With KuRui BMS, I’ve leaned heavily into a modular architecture because it simply works better for EV and storage customers in the U.S.:
Smart modules
Each module handles local voltage, temperature, and sometimes current sensing.
The master controller aggregates SoC, SoH, thermal runaway prevention logic, and system-level protections.
Wiring reduction
Fewer long, low-voltage signal wires snaking through the pack.
Cleaner layouts, faster assembly, lower risk of wiring mistakes, and easier maintenance.
In many projects, we’ve cut signal wiring bundles by 30–50% compared to older centralized layouts.
Easy compliance
The architecture is built with BMS safety standards compliance in mind, supporting automotive customers who need to pass UL, IEC, and transport tests.
You can see how serious we are about this in our list of KuRui BMS certifications and test reports at the KuRui certifications page.
For U.S. engineers and product teams looking for a battery management system textbook or battery management systems book pdf, pay close attention to chapters on topology, wiring, and CAN-based modular design. That’s the part that separates a lab-only design from a product that survives years in American roads, warehouses, and energy sites.
When people search “battery management systems book pdf” or “battery management system textbook,” what they really want is clear, practical explanations of state estimation—because that’s what makes a BMS feel “smart” instead of just “safe.” Here’s how I look at it when we design KuRui BMS for EVs, solar storage, and industrial packs.

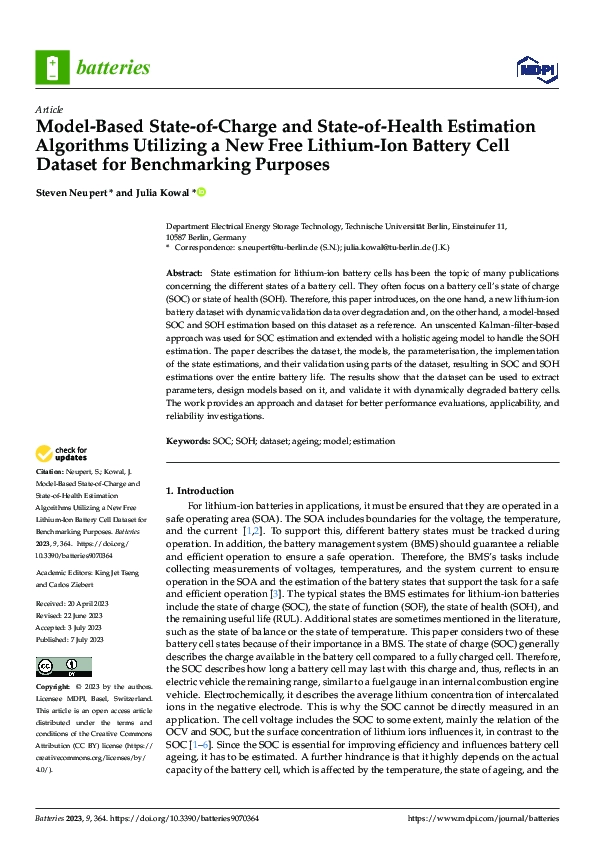

In any solid lithium-ion BMS design, state of charge (SoC) is the first number everyone watches. I rely on a mix of techniques because no single method is perfect:
Coulomb counting SoC
Measures current in and out of the pack over time.
Great for short-term accuracy and dynamic loads.
Weak point: drift over time if you don’t recalibrate.
Open-circuit voltage (OCV)
Uses the battery’s resting voltage to estimate SoC.
Very useful for recalibrating coulomb counting after rest.
Limitation: needs the pack to be at (or near) rest, so it’s not enough on its own for EVs or power tools.
Impedance spectroscopy
Looks at how the battery responds to AC signals to estimate SoC and SoH.
More accurate and powerful, but needs more hardware and processing.
Fits best in high-value systems like EVs and grid-scale BESS, not cheap consumer packs.
In practice, the most reliable BMS SoC estimation combines coulomb counting + OCV correction, with impedance-based data feeding into long-term SoH learning.
For real-world use in the U.S.—EV fleets, residential solar, backup power—the big headaches are aging and power limits. That’s where state of health (SoH) and state of power (SoP) come in:
SoH prediction algorithms track:
Capacity fade (how much “gas tank” you’ve lost).
Internal resistance growth (how hard it is to pull power).
Cycle count, temperature history, depth-of-discharge patterns.
State of power (SoP) tells you:
How much power you can safely pull right now.
How much fast charge (or regen) the pack can accept without damage.
U.S. customers care about warranty, range confidence, and uptime. Good SoH and SoP prediction directly impact:
EV range estimates
Solar + storage ROI
Downtime risk in UPS and industrial systems
To get beyond “good enough,” I work with equivalent circuit models (ECMs) and, in advanced setups, electrochemical simulations:
Equivalent circuit battery modeling
Uses R-C networks (resistors + capacitors) to mimic battery behavior.
Easy to run in real time on a BMS microcontroller.
Pairs well with Kalman filter battery estimation for tight SoC/SoH control.
Electrochemical simulations
Use more detailed physics-based models (like Doyle-Fuller-Newman style).
Mostly run offline or in the cloud for analysis, not on the BMS itself.
Great for pack design, lifetime prediction, and abuse case studies.
In the field, noisy signals will break even the best algorithm if you don’t handle them correctly. On KuRui BMS hardware, I put a lot of effort into:
Filtering and estimation:
Kalman filters for SoC, SoH, and SoP fusion.
Moving average and low-pass filters on noisy current and voltage.
Plausibility checks to catch sensor glitches and wiring faults.
Why it matters:
Stable SoC during acceleration, regen, or heavy load.
Fewer false alarms and less random shutdown in harsh conditions.
More accurate charging and discharging limits in real time.
If you want to see how this ties into real pack behavior, I break it down further in our complete DIY lithium battery BMS guide, which covers how raw signals turn into trustworthy numbers.
On top of classic methods, KuRui BMS adds AI-driven SoC and SoH estimation trained on large real-world datasets:
What our AI layer does:
Learns nonlinear relationships between temperature, usage patterns, and aging.
Reduces SoC error under dynamic load where OCV-based methods fall apart.
Adapts to different chemistries like NMC and LiFePO₄ without manual retuning.
Reliability results we see in the field:
Typical SoC error narrowed to ±2–3% over full operating range for EV-scale packs.
SoH tracking within a few percent of lab-reference measurements over hundreds of cycles.
Stable performance across varied U.S. climates—from hot Southwest to cold Midwest winters.
For customers who need strict compliance and proven robustness, our AI stack is built on top of conventional, standards-aligned BMS safety architecture that follows the same high-level quality philosophy we outline in our overview of BMS quality standards followed by Chinese suppliers.
If you’re digging into any battery management system book or comparing BMS platforms, focus on how seriously they handle state estimation. That’s the difference between a pack that “works” and a system you can trust to run your EV fleet, your solar storage, or your industrial backup day after day.
When you’re serious about pack safety and cycle life, cell balancing is not optional. It’s the part of a battery management system textbook that most people skim—and then pay for later in the field.
In plain terms, balancing is just making sure every cell in the pack stays at roughly the same voltage so no single cell gets overcharged or over-discharged.
Passive balancing
Bleeds extra energy off high cells as heat through resistors.
Pros: Simple, low cost, easy to design, great for small packs or moderate C‑rates.
Cons: Wastes energy as heat, slower for large EV or ESS packs, needs careful thermal design.
Active balancing
Moves energy from higher-voltage cells to lower-voltage cells using inductors, capacitors, or transformers.
Pros: Much more efficient, faster equalization, ideal for high-value lithium-ion BMS design in EVs and golf carts.
Cons: Higher cost and complexity, more components that need validation.
For most U.S. users—golf carts, light EVs, mobility, or small BESS—passive balancing with smart control is usually the best cost/performance trade. For high-energy EV or grid-scale systems, active balancing pays off in efficiency and longer pack life.
Balancing isn’t something you want running blindly all the time. In a practical battery management system book, the good systems all follow similar rules:
Voltage delta trigger: Start balancing when cell-to-cell difference exceeds a set threshold (for example, 10–30 mV for tight EV packs, 30–50 mV for general-purpose packs).
Top-of-charge focus: Most balancing is done near the top of charge, where voltage is more sensitive to capacity differences.
Cycle-based intervention:
Light use: balance every few cycles or at defined maintenance intervals.
Heavy duty (fleets, carts, rental equipment): balance at nearly every full charge, especially if packs are often partially charged.
Dialing in the right trigger and timing is a big part of state-of-charge estimation techniques actually working in the real world.
Unbalanced cells are the start of a slow-motion failure:
A weak cell hits over-voltage or under-voltage first and takes more stress every cycle.
Over time, that cell’s state-of-health drops faster, and it drags the entire pack’s usable capacity down.
In extreme cases, one cell running hotter and harder can increase thermal runaway risk, especially under heavy loads or ultra-fast charging protocols.
Good balancing strategy:
Extends pack lifespan by keeping stress evenly distributed.
Stabilizes SoC and SoH prediction algorithms, so your range and runtime estimates don’t swing wildly.
Reduces hotspots because no “problem cell” is getting hammered every drive or discharge.
Modern active balancing isn’t just big inductors anymore. We’re seeing:
Inductive balancing
Uses magnetics to shuttle energy between cells or groups of cells.
High efficiency, good for large EV-style packs.
Capacitive balancing
Uses capacitors to “shuffle” charge cell-to-cell.
Simpler hardware, solid middle ground between passive and full-blown inductive active systems.
These emerging methods line up well with modular BMS architectures and pack designs where wiring reduction and high reliability are critical.
In the field, I keep it simple. Here’s a quick imbalance diagnostic checklist using KuRui BMS tools:
Log cell voltages at full charge
Look for cells that are consistently high or low vs. the pack average.
Check balancing status flags
Confirm which cells the BMS is actively bleeding or transferring energy from.
**Compare SoC vs
When people search for a battery management systems book pdf, they usually want clear, practical guidance on one of the most critical topics: battery thermal management. If you get this part wrong, nothing else about your lithium-ion BMS design really matters.
In a lithium-ion pack, heat isn’t just “because it’s working hard.” It mainly comes from:
Joule heating (I²R losses)
High current + internal resistance = fast temperature rise, especially during fast charging, EV acceleration, or heavy inverter loads.
Entropic heat
Heat generated by the chemistry itself when the cell is charged or discharged, depending on state of charge and voltage.
Side reactions (Arrhenius behavior)
As temperature rises, unwanted reactions speed up (modeled by Arrhenius equations). That’s what accelerates:
Capacity fade
Gas generation
Risk of thermal runaway if not controlled
A solid BMS doesn’t just “watch temperature.” It predicts where heat is going and clamps current and charging power early.
Good thermal management is always a system design + BMS problem, not one or the other. In practice for EVs, e-bikes, and BESS, we usually pair the BMS with:
Air cooling
Fans, ducts, and airflow control for low-to-medium power packs.
Liquid cooling
Coolant plates, channels, and pumps for EVs and high-power battery energy storage systems.
Phase-change materials (PCM)
Materials around the cells that absorb heat during high load peaks, smoothing the temperature spikes.
The key is closed-loop control: the BMS reads sensors, calculates safe limits, and then controls fans, pumps, and charge/discharge current in real time.
If you’re still picking hardware, a quick overview of required BMS components and sensors in a pack is covered well in this type of guide, and KuRui has a clear breakdown in their BMS components list for lithium battery packs.
One or two temperature sensors on a big pack isn’t enough. On real systems, we:
Place multiple NTCs or digital temp sensors across the pack (cells, busbars, coolant plates).
Combine:
Cell temperatures
Pack current
Voltage and SoC
Cooling system status
Use sensor fusion algorithms to flag:
Localized hotspots
Abnormal temperature gradients
Failing cooling paths (e.g., air-flow blocked, pump failure)
This is exactly where a smarter BMS stands out: not just tripping at a temperature limit, but recognizing dangerous patterns early.
With KuRui BMS, we build in predictive thermal control, not just basic protection:
We model the pack’s thermal behavior against:
Current profile
SoC window
Cooling configuration
The BMS then:
Limits charge current before cells hit dangerous temps during fast charging
Derates discharge power under sustained high loads
Pre-activates cooling (fan or pump) when it predicts a hotspot, not after it appears
In field data from EV-style and e-mobility packs, this approach has:
Reduced peak cell temperatures by double digits (°F) under the same load
Cut thermal runaway risk by keeping cells out of the “danger zone” at high SoC + high temp
For light EV packs like e-bikes, KuRui’s electric bicycle BMS solutions use similar logic, tuned for compact enclosures and limited airflow, which is critical in hot US climates and stop‑and‑go urban use. You can see how that’s implemented in our electric bicycle BMS product lineup.
If you’re building BMS for the US market, especially for EVs or industrial ESS, your thermal management strategy needs to align with major safety standards and test protocols, including:
UN 38.3 – Transport safety, including thermal abuse conditions
IEC 62619 – Industrial lithium battery safety (thermal stability, propagation, fault conditions)
Automotive standards (e.g., ISO 26262 for functional safety) that affect how your BMS reacts to overtemp scenarios
A book-level battery management system textbook will usually touch on these standards in theory. Our approach with KuRui is to design the BMS and thermal controls so you’ve got a practical path toward thermal runaway prevention and standards compliance, not just lab demos.
If you’re digging through “battery management system book” PDFs for thermal chapters, use them as the theory baseline—and then map those equations and models directly into real BMS logic, sensors, cooling hardware, and standards-driven safety limits. That’s the gap we focus on closing with KuRui BMS.
When people search for a “battery management systems book pdf” or a full battery management system textbook, what they really want is clear, practical guidance on how to charge and discharge safely without killing cycle life. That’s exactly where a well-designed KuRui BMS steps in.
A solid lithium-ion BMS design needs to handle different charging styles without stressing the cells:
CCCV (Constant Current / Constant Voltage):
Pushes a steady current until the pack hits its target voltage
Then holds that voltage while the current tapers off
Safest, most common method for EVs and energy storage
Pulse Charging:
Short charge bursts with rest periods to reduce heat
Can shorten charge time while limiting stress when tuned correctly
Ultra-Fast Charging Protocols:
Aggressive currents with strict temperature and voltage monitoring
Only safe when the BMS tightly controls SoC, SoH, and pack temperature in real time
KuRui smart charging modules are built to support these protocols while enforcing limits at the cell level, not just the pack.
Overcharge and over-discharge are what quietly destroy packs in U.S. EV fleets, powerwalls, and mobile power banks:
Overcharge Protection:
Per-cell high-voltage cutoffs
Controlled tapering near full SoC to avoid lithium plating
Hardware and software layers watching for sensor or relay failures
Over-Discharge Protection:
Low-voltage thresholds based on chemistry and temperature
Reserve capacity for “limp-home” or UPS backup modes
Lockouts to prevent repeated deep discharge abuse
If you’re seeing nuisance trips or mis-triggered cutoffs, it’s worth looking at how KuRui handles mis-triggered overcharge and over-discharge events in this detailed guide on solving BMS false overcharge/over-discharge protection.
Modern state-of-charge estimation techniques and SoH prediction algorithms open the door for real optimization:
The BMS learns how your pack actually behaves under U.S. driving or usage patterns (fast freeway runs, hot summers, cold winters)
It adjusts:
Charge current limits
End-of-charge SoC targets
Discharge power limits
The goal: maximum usable energy per day without shaving years off the pack.
KuRui’s AI-driven logic uses real-time data (current, voltage, temperature history) instead of fixed “textbook” rules.
For EVs and light electric vehicles, regenerative braking is free energy—if your BMS can take it:
Real-Time SoP (State-of-Power) Limits:
Decide how much regen current is safe at this moment
Consider SoC, temperature, and internal resistance
Dynamic Control:
High SoC or cold cells? BMS reduces regen torque to avoid over-voltage or plating
Warm, mid-SoC? BMS allows stronger regen for better efficiency
This is where a robust equivalent circuit battery modeling and Kalman filter battery estimation really pays off.
With KuRui BMS the charging and discharging optimization is not just theory—it’s wired into the hardware:
Key Benefits for U.S. Users:
Longer cycle life by avoiding hidden micro-abuse (small repeated over-stress events)
More consistent range and capacity over the life of the pack
Safer operation under ultra-fast charging and high-power discharge
If you want a deeper dive into how intelligent equalization and charge control work together this breakdown of smart equalizer BMS features backed by data lines up well with what most people expect from a serious battery management system book.
In short: a KuRui BMS doesn’t just “let the charger run”—it actively manages charging and discharging to hit the sweet spot between performance safety and battery lifespan.
When you’re looking at any serious battery management system textbook or searching for a solid battery management systems book PDF fault detection and safety are the parts you do not cut corners on. This is where a BMS proves if it’s “graduate-level” or just hobby-grade.
In real-world EVs energy storage systems and mobility devices the same fault patterns keep showing up:
Cell shorts and overvoltage
Internal micro‑shorts external shorts or damaged cells
Overcharge / over‑discharge events
Rapid voltage drop or abnormal cell drift inside the pack
Sensor errors
Broken or loose temperature probes
Offset or stuck voltage / current sensors
Calibration drift over time
Communication glitches
CAN bus noise or broken wiring
Lost packets between modules and master BMS
Address conflicts or firmware mismatch
A robust BMS runs diagnostic trees in firmware:
Check signal plausibility (does the reading make physical sense?)
Cross‑compare cells and sensors (is one way off from the rest?)
Confirm over time (true fault vs. one‑time noise spike)
To build a truly resilient battery pack you design assuming something will go wrong:
Redundant measurements on key points (voltage pack current critical temps)
Fail-safe modes not fail-operational-only
Limp-home mode for EVs and machinery:
Reduced power limit
Lower voltage and temperature thresholds
Disabled fast charging
Clear fault codes sent to the main controller
The goal: protect the pack protect the user and still let the vehicle or system safely move to a service location instead of just shutting off on the highway or job site.
As soon as you connect a BMS to CAN bus telematics or cloud you’ve opened the door to cyber risks:
Spoofed CAN messages (fake SoC fake temperature fake ready signal)
Unauthorized parameter changes (raising limits disabling protections)
Remote firmware attacks
Best practices for battery management system cybersecurity include:
Message authentication and ID whitelisting
Encrypted or signed firmware updates
Network segmentation between safety‑critical BMS and non‑critical infotainment or cloud devices
A serious BMS isn’t “ready” until it’s been punished in the lab:
HIL (Hardware‑in‑the‑Loop) simulations
Simulate cells wiring faults sensor failures in real time
Validate detection logic and limp-home responses
Abuse testing to UN 38.3 and beyond
Overcharge short‑circuit vibration thermal shock scenarios
Confirm the BMS reacts fast enough to prevent thermal runaway
If you’re designing around lithium-ion BMS safety standards UN 38.3 is the starting point not the finish line.
With KuRui BMS we’ve built our architecture around fault tolerance from day one:
Fast multi‑layer fault detection (cell module pack comms)
Built‑in limp‑home strategies tuned for EVs wheelchairs industrial carts and ESS
Field data–driven thresholds updated through controlled firmware releases
A zero-failure field record in our flagship deployments backed by rigorous HIL and abuse testing
If you want a practical overview of what a BMS does and why safety logic matters I break this down plainly in our guide on what a battery BMS is and how it protects your devices and energy storage systems. For deeper context on lithium-ion behavior behind these protections you can also check our article on lithium-ion battery fundamentals and risks.
This is the material that should be front and center in any battery management system textbook or battery management system book if you actually plan to ship safe commercial-grade products in the U.S. market.
Battery management systems aren’t just “nice to have” anymore—they’re the control center for every serious lithium-ion project in the U.S. from daily drivers to utility-scale storage. When you’re looking for a battery management systems book pdf or a solid battery management system textbook these are the real-world applications you want covered.
In electric and hybrid vehicles the BMS is the gatekeeper for safety range and warranty:
BEVs (Battery Electric Vehicles)
Manages state-of-charge (SoC) so the driver gets accurate range not guesswork
Protects cells during fast charging regen braking and high-current acceleration
Coordinates with the vehicle ECU over CAN bus for torque limits and limp modes
HEVs (Hybrid Electric Vehicles)
Prioritizes high cycle life with tight SoC windows
Handles frequent charge/discharge from regen and engine assist
For platform decisions our breakdown of centralized vs distributed BMS cost effectiveness is especially relevant for U.S. EV startups and retrofit shops.
For U.S. grid-tied systems—commercial roofs community solar or utility BESS—BMS decisions directly affect project ROI:
Frequency regulation & peak shaving
Tight SoC control to respond to grid commands without over-stressing cells
State-of-health (SoH) tracking to plan replacements before failures
Microgrids & backup power
Islanding support black-start readiness and safe auto-reconnect
Robust fault detection for remote unmanned sites
A serious BESS without a smart BMS is a liability not an asset.
For portable and industrial use the BMS has to be small efficient and rock-solid:
Drones & robotics
Lightweight modular BMS architectures to keep payload high
High C-rate protection and reliable SoC for mission time prediction
UPS & data centers
Safe switchover during grid loss
Thermal management and redundancy for 24/7 uptime
Medical devices & tools
Zero-tolerance safety: over-voltage over-current and thermal runaway prevention
Error logging for compliance and audits
The next wave of U.S. energy products is already pushing BMS requirements higher:
Solid-state batteries
Different voltage profiles and thermal behavior mean updated equivalent circuit modeling
More sensitive to overcharge—BMS precision matters even more
Vehicle-to-Grid (V2G)
Bi-directional power flow with strict utility requirements
Smarter state-of-power (SoP) limits so grid use doesn’t kill your pack life
We’ve built KuRui BMS solutions to plug into multiple U.S. markets with minimal rework:
EV conversions and small OEMs using our modular packs for 48V–400V platforms
Commercial solar + storage projects needing certified BMS for export and UL-driven designs (our guide on custom BMS certifications for export is a good starting point)
Industrial carts AGVs and backup systems where fault tolerance and remote monitoring are non-negotiable
If you’re digging through a battery management system book or any battery management systems book pdf make sure it doesn’t just explain theory—but also covers these real deployment scenarios. That’s the gap we design KuRui BMS to fill in actual U.S. projects.
If you’ve been digging through every battery management systems book PDF and battery management system textbook you can find this is the part where theory turns into a real working system. This is exactly where KuRui BMS is built to shine.
I design KuRui BMS platforms to solve the three things U.S. engineers and product teams complain about most: scalability cost and integration pain.
What you get with KuRui:
Scalable architecture
From small 4–16S lithium packs to high-voltage EV and ESS stacks
Centralized modular and distributed options so you’re not locked into one topology
Cost-effective hardware
Optimized BOM and compact PCBs to keep pack costs competitive
Robust protection features baked in so you don’t add extra boards just for safety
Open API and easy integration
REST/JSON and CAN-based APIs for quick hook-up to your ECU BESS controller or cloud
Designed for easy integration with existing dashboards and fleet or grid monitoring tools
You’re not just getting a BMS board; you’re getting a platform that plugs into your existing workflow instead of forcing you to rebuild it.
Here’s how I recommend you size and select a KuRui BMS for your pack without overcomplicating it:
Confirm your cell chemistry and configuration
Chemistry: NMC LFP NCA etc.
Layout: series (S) count and parallel (P) count
Example: 16S4P LFP pack
Define your voltage range
Pack nominal voltage: cells_in_series × cell_nominal_voltage
Max pack voltage: cells_in_series × max_cell_voltage
Min pack voltage: cells_in_series × min_cell_voltage
Match this to the KuRui BMS voltage rating (never overshoot the max rating).
Determine current and power needs
Peak discharge current (e.g. EV launch tool startup)
Continuous discharge current
Charge current (standard vs fast charge)
Choose a KuRui BMS with continuous and peak current ratings above your real-world worst case.
Choose topology and features
Centralized for small packs modular or distributed for EVs and larger ESS.
Decide on passive or active balancing and communication (CAN UART RS485).
For more on choosing balancing methods see our breakdown of passive and active BMS for lithium battery management.
Check compliance and integration
Confirm alignment with your target standards (UL UN 38.3 automotive-level safety strategies).
Make sure your controller/vehicle/UPS can talk via CAN or your chosen interface and that your firmware team can use our APIs.
Once you have these five points nailed down locking in the right KuRui model is straightforward.
To help you move beyond just reading about lithium-ion BMS design in a battery management system book I include a full set of free practical resources:
Interactive design tools
Web-based calculators for cell count pack voltage and BMS model selection
Quick-start configuration templates for different chemistries (LFP vs NMC)
Live and on-demand webinars
U.S.-time-zone friendly sessions on SoC estimation techniques battery thermal management strategies and active cell balancing methods
Real project case breakdowns: EV packs e-bikes solar storage and backup power
Open-source compatibility examples
Code samples for popular MCUs and single-board computers
Reference projects showing CAN decoding dashboard building and data logging
